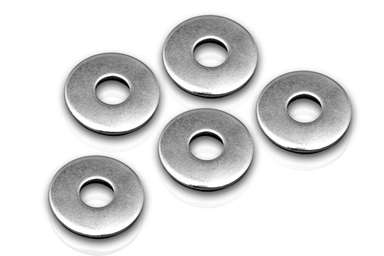

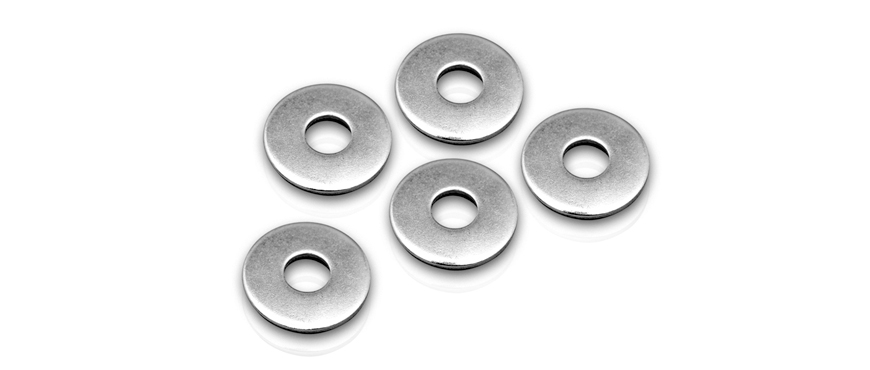

Plain Washers, Spring Lock Washers and Hardened Steel Washers

Standards:-

ASTM/ASME/BS/DIN/BS EN ISO /JIS

Material:-

Mild Steel, Carbon Steel, Alloy Steel & Stainless Steel.

Size Range:-

Typical Grades & Standards:-

DIN 125/A
DIN 127/B
DIN 9021
ASTM F4 36 and F436M

Any other specific grade can be manufactured upon request with short lead times

Ordering information:-

Dimensions – Size.
Standard and Grade
Finish (Black, GI, Yellow, HDG, Cadmium, Nickel, PTFE etc.)

DIN 125 FLAT WASHER

washer size	Inner Diameter (d1)	Outer Diameter (d2)	Thickness (h)
M6	6.40	12.00	1.60
M8	8.40	16.00	1.60
M10	10.50	20.00	2.00
M12	13.00	24.00	2.50
M16	17.00	30.00	3.00
M20	21.00	37.00	3.00
M24	25.00	44.00	4.00
M27	28.00	50.00	4.00
M30	31.00	56.00	4.00
M33	34.00	60.00	5.00
M36	37.00	66.00	5.00
M39	40.00	72.00	6.00
M42	43.00	78.00	7.00
M45	46.00	85.00	7.00
M48	50.00	92.00	8.00
M52	54.00	98.00	8.00
M56	58.00	105.00	9.00
M64	66.00	115.00	9.00
M72	74.00	125.00	10.00

WASHER

Washer size	Inner Diameter (d1)		Outer Diameter (d2)		Thickness(h)
	Max.	Min.	Max.	Min.	Max.	Min.
12	14.40	14.00	27.00	25.70	4.60	3.10
14	16.40	16.00	30.00	28.70	4.60	3.10
16	18.40	18.00	34.00	32.40	4.60	3.10
20	22.50	22.00	42.00	40.40	4.60	3.10
22	24.50	24.00	44.00	42.40	4.60	3.40
24	26.50	26.00	50.00	48.40	4.60	3.40
27	30.50	30.00	56.00	54.10	4.60	3.40
30	33.60	33.00	60.00	58.10	4.60	3.40
36	39.60	39.00	72.00	70.10	4.60	3.40
42	45.60	45.00	84.00	81.10	7.20	4.60
48	52.70	52.00	95.00	92.80	7.20	4.60
56	62.70	62.00	101.00	104.50	8.70	6.10
64	70.70	70.00	187.00	115.80	8.70	6.10
72	78.70	76.00	130.00	127.50	8.70	6.10
