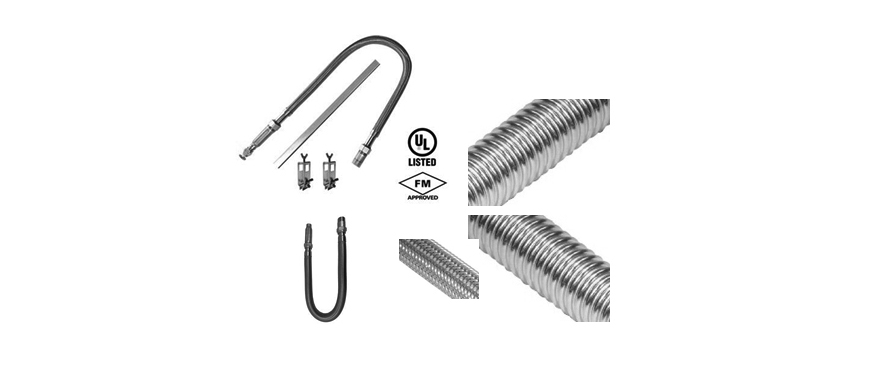

Flexible Metal Hose

The Fire sprinkler flexible hose is a part to connect with the sprinkler and the water pipe network.

This type is UL/FM Approval

Application: Commercial Suspended Ceilings

Rated Working Pressure:14.9kg/cm2 (200psi)

Test Pressure: 56.2kg/ cm2 (800psi)

Maximum Ambient Temperature: 135℃(275℉)

Minimum Bending Radius: 175mm(7 in.)

Inlet Size: 1" NPT (BSPT and Rp is optional)

Outlet Size: 1/2" and 3/4" NPT (BSPT and Rp is optional)

Lengths: 700mm-1000mm-1200mm-1500mm-1800mm
